Product Details:
|
| Condition: | New | Type: | Paper Cutting Machine |
|---|---|---|---|
| Automatic Grade: | Automatic | Voltage: | 220V |
| Power: | 22KW | Dimension(L*W*H): | 9300*2600*2300mm |
| Weight: | 8500 | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Function: | High Speed Flexo Exercise Notebook Ruling Machine |
| Color: | Grey | Speed: | 350m/min |
| Running Time: | 24 Hours | Installation: | 1 Technician 10 Days |
| Operator Training: | 5 Days | Daily Maintenance At End Of Day: | 0.5 Hour Cleaning |
| Product Name: | LD1020YX School Exercise Book Making Machine From Reel To Pile | Name: | Exercise Notebook Ruling Machine |
| Port: | Ningbo Port |

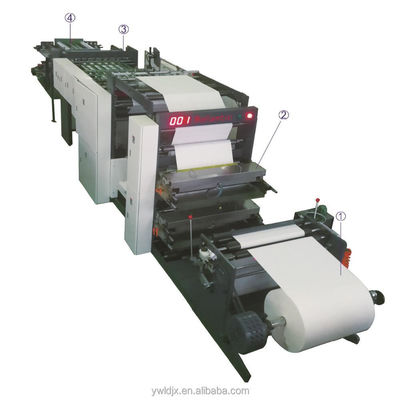

High Speed Flexo Printing Machine Exercise Notebook Ruling Machine
This machine adopts high techniques such as microcomputer control , electro-optical tracking, gas-liquid interaction, human-machine interface touch screen operation and ink flexographic printing as ink flexographic printing is environmentally-friendly and scientific. This production line is an ideal choice of mass production of staple-binding notebooks, with a perfect combination of 5 processes from reel one paper unwind , high speed flexographic printing with - 2/2 , paper cross cutting , collecting and finished sheets collect.
Specification:
Product Model LD-1020YX
Web Width 580-1020mm
Max．Printing Speed 300m/minute
Repeat Range 300-670mm
Cutting Length 300-670mm
Counting & Collecting 5-50sheets
Max．Reel Paper Diameter 1200mm
Sheet Weight 45-120g
Total Power 30kw
Overall Dimensions （L X W X H ) 9300 X 2600 X 2300mm
Machine Weight 7.5t
1) Fully automatic, take it easy, accurate color, long life.
2) Environmentally-friendly ink flexographic two colors printing
3) Use motors, variable frequency speed control, saving electricity, small running fluctuations.
4) Use special diagonal-tooth gear, accurate printing size.
5) Printing rolls treated by dynamic balance, static balanced.
6) Print produce are clear and good arrangement quality.
7) Speed adjustable, suitable for variable paper
Our company is a manufacturing enterprise specializing in producing Exercise and Notebook Production Line equipment as follows.
• wire stapled student notebooks,
• soft cover office notebooks,
• high-grade plastic covered notebooks,
• legal pads,
• carbonless invoice multi copy notebooks,
• glue-bound notebooks etc.
Automation and efficiency are built in from the initial design taking workplace safety, environmental and export requirements into consideration. Ease of maintenance and operation has been considered.
We have sold equipment into more than 20 provinces in China and more than 11 countries around the globe.
Employees number 80 plus employees, more than 20 being in the design, research and development team. We have two production bases and research teams in YiWu city and KunShan city. The factory areas exceed 10 000 square meters. Company annual sales are more than 50 million Yuan.
Name: soft paper cover feeder
Brand: wellmatic
Original: China
The paper cover feeder was developed by our factory.
Name: saddle stitching head
Brand: Hohner
Original: Germany
Made in Germany.
Name: STAMPING ROLLER BEARING
Brand: FAG
Original: Germany
We purchased the STAMPING ROLLER BEARING from Germany.
Name: CUTTING SYNCHRONOUS BELT
Brand: SOMGS
Original: Germany
We purchased the CUTTING SYNCHRONOUS BELT from Germany.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory and our Customers' Factory.
* Training how to instal the machine, training how to use the machine free.
* Engineers available to service machinery overseas.
