Name: soft paper cover feeder
Brand: wellmatic
Original: China
The paper cover feeder was developed by our factory.
|
Product Details:
|
| Applicable Industries: | Printing Shops | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Printing Machine |
| Automatic Grade: | Automatic | Voltage: | 220V |
| Dimension(L*W*H): | 9300*2600*2300mm | Weight: | 8500 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Egypt, Indonesia, Pakistan |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Function: | Printing And Ruling For Exercise Book And Notebook |
| Color: | Green Or Grey | Speed: | 350m/min |
| Running Time: | 24 Hours | Installation: | 1 Technician 10 Days |
| Operator Training: | 5 Days | Daily Maintenance At End Of Day: | 0.5 Hour Cleaning |

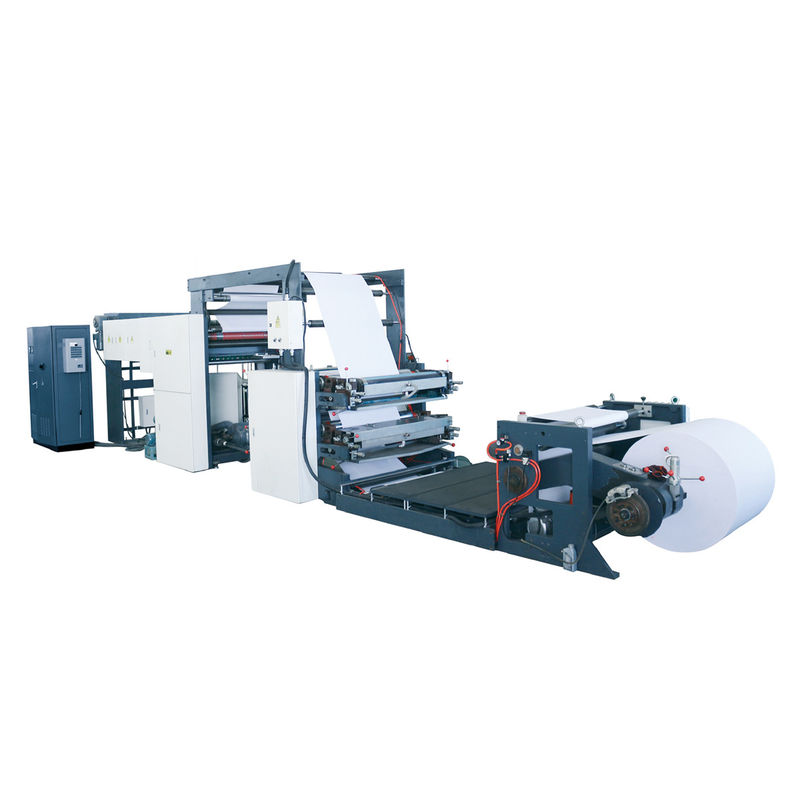

| Product Name: | Flexographic Printing Machine For Exercise Book | Port: | Ningbo Port |
This machine adopts high techniques such as microcomputer control , electro-optical tracking, gas-liquid interaction, human-machine interface touch screen operation and ink flexographic printing as ink flexographic printing is environmentally-friendly and scientific. This production line is an ideal choice of mass production of staple-binding notebooks, with a perfect combination of 5 processes from reel one paper unwind , high speed flexographic printing with - 2/2 , paper cross cutting , collecting and finished sheets collect.
Specification:
Product Model LD-1050YX
Web Width 580-1020mm
Max．Printing Speed 300m/minute
Repeat Range 300-670mm
Cutting Length 300-670mm
Counting & Collecting 5-50sheets
Max．Reel Paper Diameter 1200mm
Sheet Weight 45-120g
Total Power 30kw
Overall Dimensions （L X W X H ) 9300 X 2600 X 2300mm
Machine Weight 7.5t
Function and features:
Fully automatic, take it easy, accurate color, long life.
1) Environmentally-friendly ink flexographic two colors printing
2) Use motors, variable frequency speed control, saving electricity, small running fluctuations.
3) Use special diagonal-tooth gear, accurate printing size.
4) Printing rolls treated by dynamic balance, static balanced.
5) Print produce are clear and good arrangement quality.
6) Speed adjustable, suitable for variable paper
Name: soft paper cover feeder
Brand: wellmatic
Original: China
The paper cover feeder was developed by our factory.
Name: saddle stitching head
Brand: Hohner
Original: Germany
Made in Germany.
Name: STAMPING ROLLER BEARING
Brand: FAG
Original: Germany
We purchased the STAMPING ROLLER BEARING from Germany.
Name: CUTTING SYNCHRONOUS BELT
Brand: SOMGS
Original: Germany
We purchased the CUTTING SYNCHRONOUS BELT from Germany.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory and our Customers' Factory.
* Training how to instal the machine, training how to use the machine free.
* Engineers available to service machinery overseas.
Packaging | ||
Size | depends | |
Weight | depends | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If need,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request. The photo shows that we are loading the containers. | |
Packaging | ||
Size | pending | |
Weight | pending | |
Packaging Details | flexographic printing machine for exercise book If need,the wooden box will be fumigated. The normal package is wooden box(Size: L*W*H). | |
