Product Details:
|
| Condition: | New | Year: | 2023 |
|---|---|---|---|
| Dimension(L*W*H): | 35m*5m*5m | Weight: | 18 KG |
| Automatic Grade: | Automatic | Voltage: | 380 |
| Power: | 180 | Machinery Capacity: | 400KGS/HOUR |
| Key Machines: | Extruding And Shaping | Product Name: | Hot Melt Glue Stick Production Line |
| Applicable Industries: | Chemical Industry | After-sales Service Provided: | 1 Year |
| Material Feature: | Oil Resistant | Keyword: | Eva Sticker Making Machine |
| Usage: | For Making Hot Melt Glue Sticker |
AUTOMATIC HOT MELT GLUE STICK MAKING PRODUCTION LINE
Process:

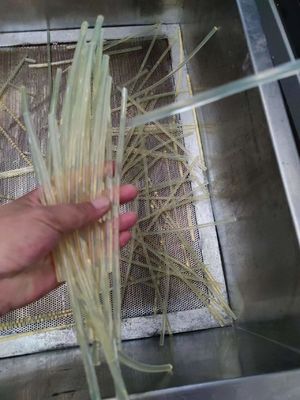

Put in raw materials→automatic feeding→mixing→spiral extrusion molding→cooling and shaping→automatic pulling→automatic cutting→finished product

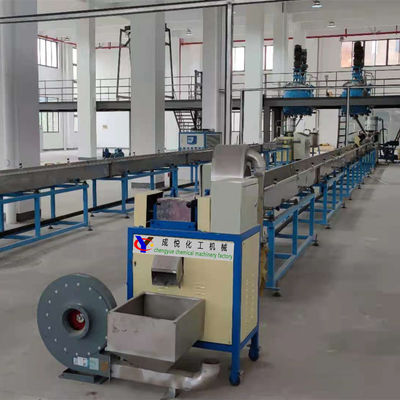

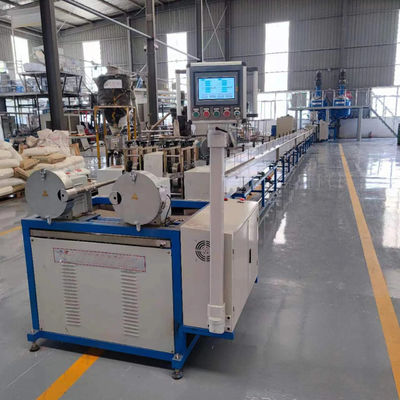

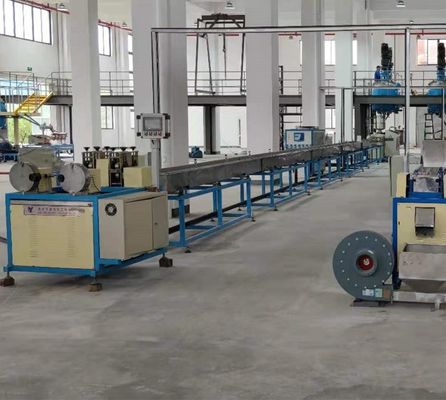

1. The whole line composition:
1). Reactor 2 sets (capacity depends on the quantity required).
2). Extruding machine 1 set
3). Water basin 24meter
4). Cooling system (Refrigerator) 1 set

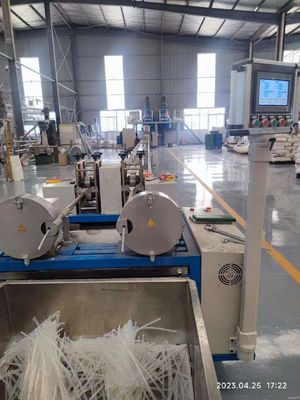

5). Cutting stick machine 1 set 4 heads
The other detail configuration can be designed as customer output requirements.
|
| NAME | UNIT | QTY | DETAILS |
| 1 | 1000L Reactor | SET | 1 | Kettle body structure: flange open type 30kw motor, variable frequency speed regulation Hard tooth surface reducer Rack DJ83, mechanical seal 212-80 304 stainless steel shaft speed Φ65 -65 rpm Inner barrel : 304 Stainless steel , Φ1000*1250*8mm Outer barrel :A3 steel, Φ1200*1250*5mm Upper and lower inner heads : 304 Stainless steel, Φ1000*8mm Outer head : A3 steel, Φ1200*8mm Heating rods 3kw*12 pieces (four-zone heating, automatic temperature control) Stainless steel surface polishing treatment, carbon steel outer surface painting treatment The power distribution cabinet contains contactors, start and stop buttons, frequency converters, etc. The head is equipped with quick-opening manhole, stainless steel flange, sight glass, etc. Note: Please refer to the drawing for the remaining details . |
| 2 | Filter And delivery | SET | 1 | First-level filtration: bag filter 0.3 square meters (all contact materials are made of 304 stainless steel) Viscosity pump: 4kw (frequency control) 100L thermal insulation storage tank |
| 3 | Oil circulation system | SET | 1 | 1.5kw thermal oil pump, lower discharge pipeline, filtration, oil circulation |
