Product Details:
|
| Applicable Industries: | Manufacturing Plant, Retail, Printing Shops, Energy & Mining | Showroom Location: | Egypt, Brazil, Peru, Mexico, Russia, Kenya, Algeria, Romania, Ukraine, Nigeria |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Pressure Vessel, Gear | Condition: | New |
| Type: | Complete Exercise Book Making Machine From Reel To Notebook | Automatic Grade: | Automatic |
| Voltage: | 220V | Dimension(L*W*H): | 20400*3250*2500 |
| Weight: | 17000 KG | Warranty: | 1 Year |
| Key Selling Points: | Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | Many | Speed: | 45 Cycles/min |
| Running Time: | 24 Hours | Function: | Make Exercise Book And Notebook |
| Application Area: | Office Sationery | Customer: | Printing Press Factory |
| Running Speed: | 300 M/min | Notebook Size: | A4 A5 B4 B5 A3 And More |
| Port: | NINGBO PORT |
Soft Cover Exercise Book Machine for Full Line Ruling Folding Cutting Binding All in One

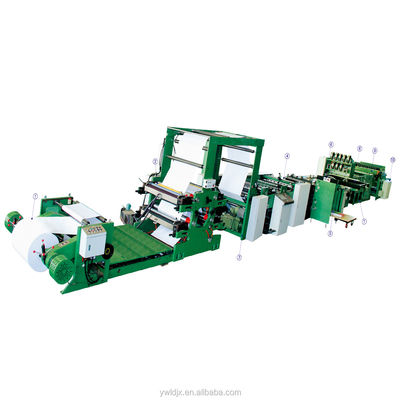

Complete Exercise Book Making Machine from Reel to Notebook
This machine utilizes advanced technology such as microcomputer controls, photoelectric tracking, touch screen operation and water ink flexographic printing etc. The machines are hydraulic powered and utilize gas pressure devices.
This production line is an ideal choice for mass production of staple-bound notebooks. It can make the finished wire stapled exercise book from reel paper automatically with a perfect combination of 12 Processes:

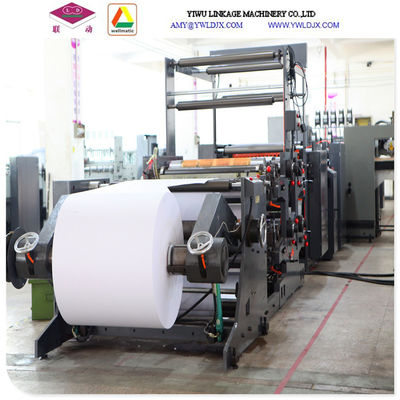

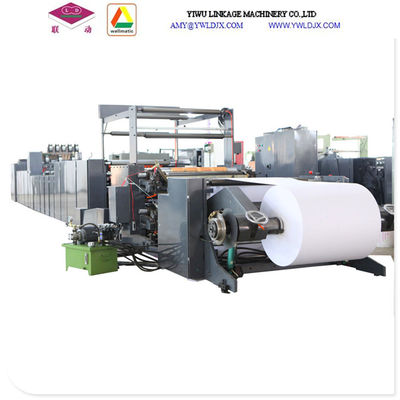

1. From One Reel Paper Unwinding,
2. High Speed Flexographic Printing With – 2 Pages & 2 Colors,
3. Rotary Slitting Knife
4. Overlapping,
5. Collation & Counting
6. Auto Cover Insertion,
7. Saddle Stitching,
8. Folding,
9. Book Spine Pressing,
10. Cross Cutting,
11. Separate Cutting
12. Delivery to the Finished Product Collection Station.

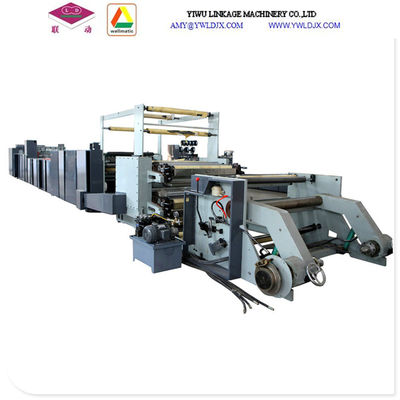

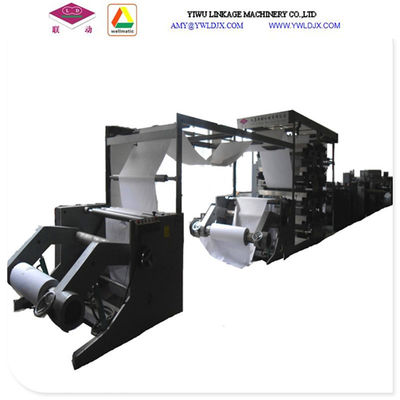

PRINTING UNIT ADVANTAGES:
1. Rigid 60mm thick, 3000 kgs cast iron frame ensures accuracy of printing and ruling
2. It is driven by toothed timing belts to ensure printing accuracy and its working life is long.
3. Long life belts are easy and quick to fit, adjust, and maintain. It uses the hydraulic pressure control, producing full print uniform lines. Brake operation is automatic thereby saving paper.

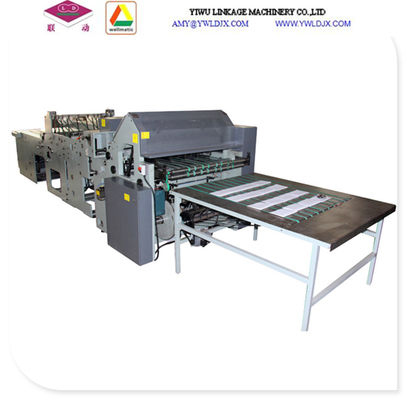

BOOK CUTTING UNIT:
1. Using a strong 60mm thick, 4000 kgs cast iron frame ensures the stability of the cutting unit.
2. The cutter is the shear type.
3. Simple and quick to operate and adjust. The longitudinal cutters consistently cut the same size without beveling.
TECHNICAL PARAMETERS:
1) Product Model Type LD-1020
2) Web Width 580-1020mm
3) Max. Printing Speed 300 M/Min
4) Repeat Range 290-720mm
5) Cutting Length 290-720mm
6) Counting & Collecting 5-50sheets
7) Max. Reel Paper Diameter 1500mm
8) Sheet Weight 40-120gsm
9) Note Book Size Min. 125*125mm
10) Note Book Size Max. 297*210mm
11) Cover Paper Weight 70-350g
12) Appendix Weight(Sheet) 40-150g
13) Max. Output Frequency Trimming 45cycles
14) Sheet Stitching Thickness 8 Mm
15) Total Power 32 Kw
16) Overall Dimensions(L*W*H) 20400*3250*2500MM
17) Machine Weight 17 T
Company products:
Our company is a manufacturing enterprise specializing in producing Exercise and Notebook Production Line equipment and related devices. Our equipment cover the production of wire stapled student notebooks, soft cover office notebooks, high-grade plastic covered notebooks, legal pads, carbonless invoice multi copy notebooks and glue bound notebooks etc.
We offer complete notebook production lines. Automation and high efficiency are built in from the initial design taking workplace safety, environmental and export requirements into consideration. We have sold equipment into more than 20 provinces in China and more than 11 countries around the globe. We have 80 plus employees, more than 20 being in the design, research and development team. We have two production bases and research teams in YiWu city ZheJiang province and KunShan city, JiangSu province. The factory areas exceed 10 000 square meters. Company annual sales are more than 50 billion yuan.
* Inquiry and consulting support.
* Sample inspecting support.
* View our Factory and our customers' Factory.
* Free install the machine in your factory and Free training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | Pending | |
Weight | 1.2 T | |
Packaging Details | The standard export package is wooden box(Size: Pending). If required, the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request. Complete Exercise Book Making Machine from Reel to Notebook: 2*40HQ and 1*20GP | |
